All about product
Specification
Reviews0
Questions0
In Stock
Product Code: S-30.00-60.38
Reviews:
0
Specifications:
(See all)
Color
Black
Distance between rings, mm
65
Length, mm
145
Weight
≈350 g
Diameter of rings
30
Material
Aviation aluminum

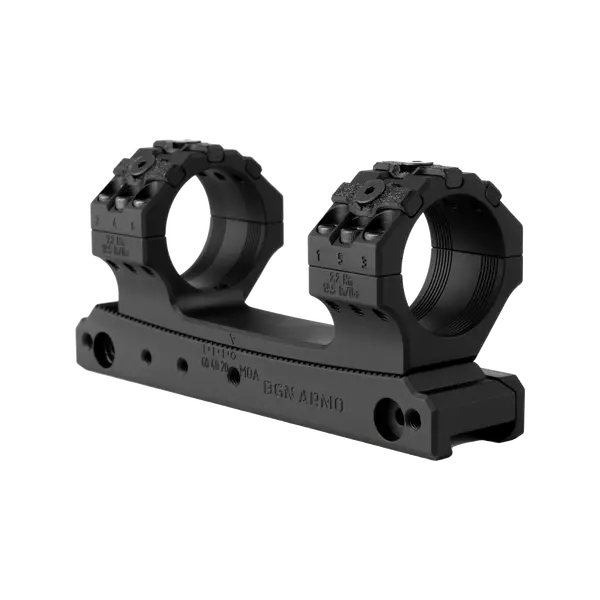

Innovative mount for long-range optics with precise tilt adjustment (0-60 MOA). Designed for heavy sights and powerful calibers (up to .338 LM ), it holds the zero and adds the necessary "elevation movement" at long distances.
Key features:
- Adjustable tilt 0–60 MOA : quick adjustment for distance/reticle/elevation screw travel.
- Monolith from one workpiece (5-axis CNC processing) — maximum concentricity and rigidity.
- Double recoil stops and reinforced base — stability under heavy optics.
- DKM-interface on the body — installation of bubble levels, bars and other accessories.
Compatibility with Picatinny / Weaver rails.
Materials and coating:
- Aviation aluminum.
- Hard anodizing (matte black).
- Steel fastener (Torx) with anti-corrosion treatment.

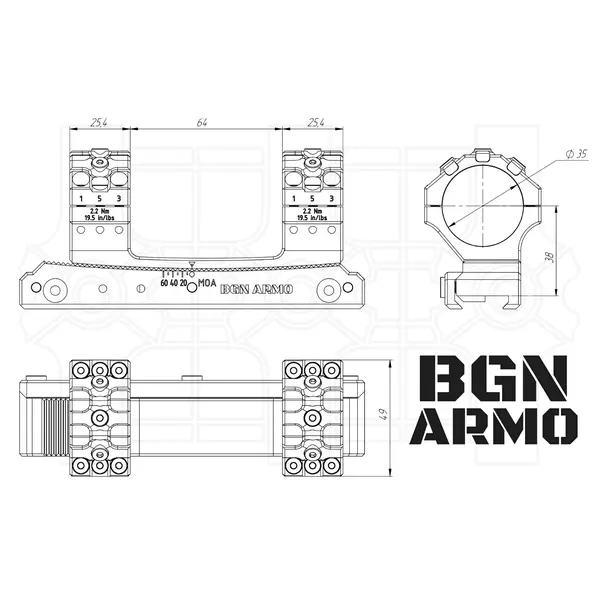

Parameters:
- Ring diameters: Ø30 / Ø34 / Ø35 mm .
- Height of the optical axis: 38 mm .
- Distance between rings: 65 mm ; ring width: 25.4 mm .
- Length: 145 mm ; weight: ≈350 g .
- Base type: screw clamping bar; (quick release version — optional).
Installation and recommendations:
- Tightening of semi-rings: 2.0–2.5 N·m (cross-cross).
- Clamping bar of the base: 5–6 N·m .
- After installing the MOA, check the level (built-in/additional DKM BL) and repeat the control tightening.
Ready to choose a configuration for your scope, caliber and shooting tasks
How to choose an MOA?
- 0–20 MOA — medium-distance hunting/sport; maximum versatility.
- 30–40 MOA — regular long-range shooting, when there is not enough "movement" in height in the sight.
- 50–60 MOA — ELR/ultra-long distances and heavy pools; fully reveals the potential of the network.
Variants of the S series:
- S-30.00-60.38 — Ø30 mm, variable tilt 0–60 MOA, H38
- S-34.00-60.38 — Ø34 mm, variable tilt 0–60 MOA, H38
- S-35.00-60.38 — Ø35 mm, variable tilt 0–60 MOA, H38
Main characteristics
Color
Black
Distance between rings, mm
65
Length, mm
145
Weight
≈350 g
Diameter of rings
30
Material
Aviation aluminum
Tilt (MOA)
0-60
Optical axis height
38 mm
