Frequency jamming
FPV (lower) - 300 MHz-600 MHz; FPV (upper) - 710 MHz-1050 MHz; DJI (discount) - 2390 MHz-2490 MHz, 5750 MHz-5880 MHz
Antenna type
quadrifilar (omnidirectional) (3dbi); patch (9dbi)
Suppression radius
up to 1000m
Operating voltage
12-26V

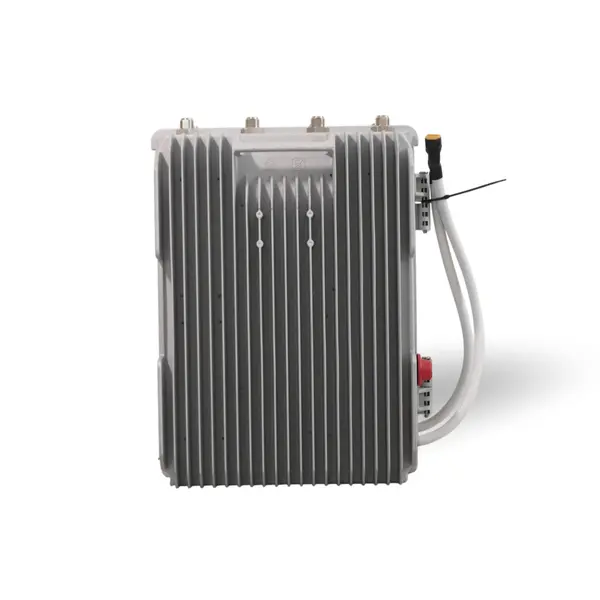

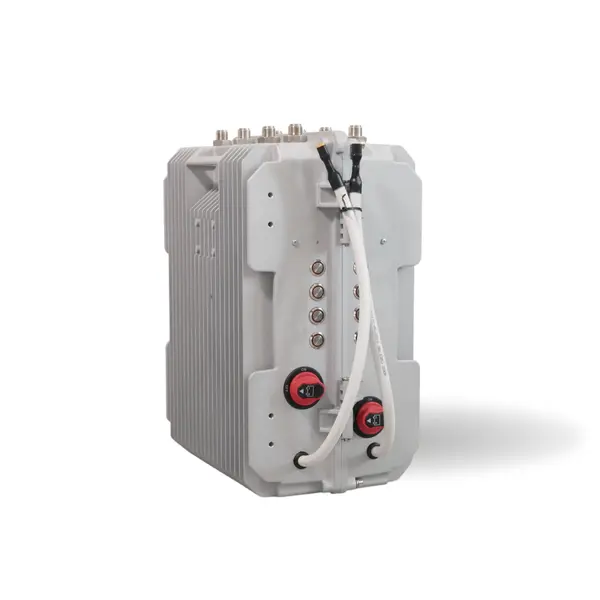

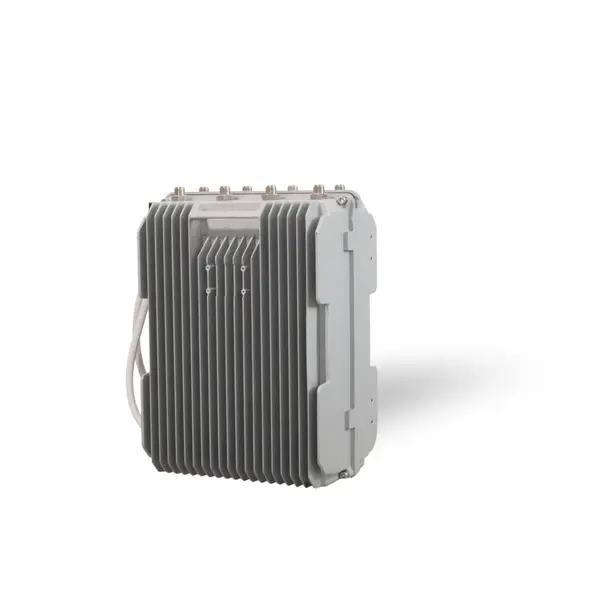

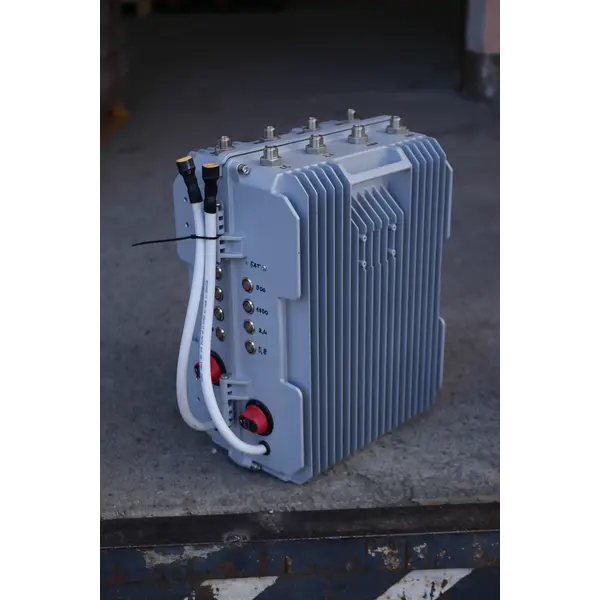

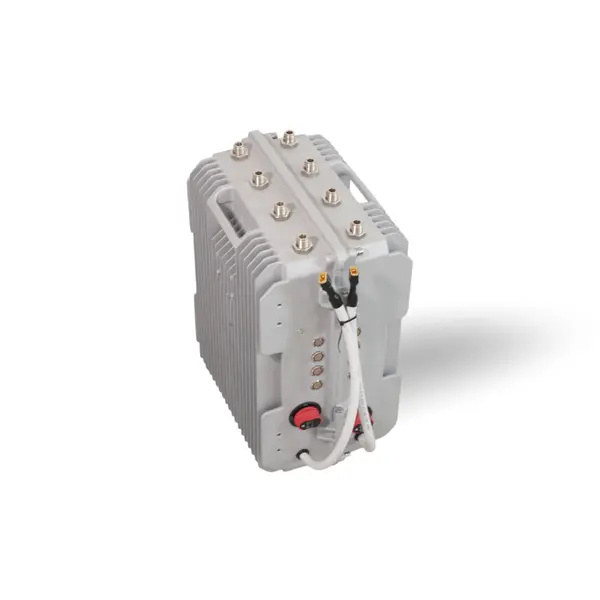

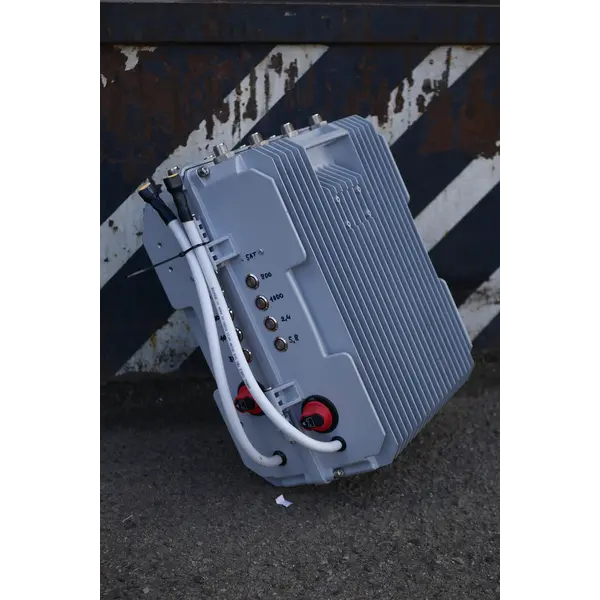

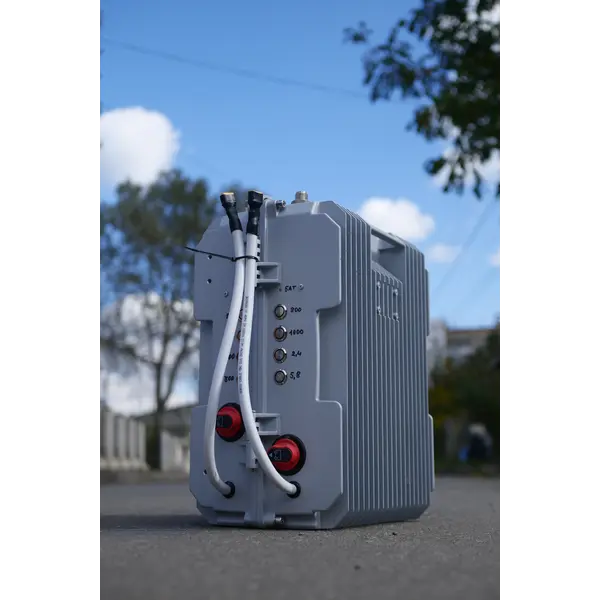

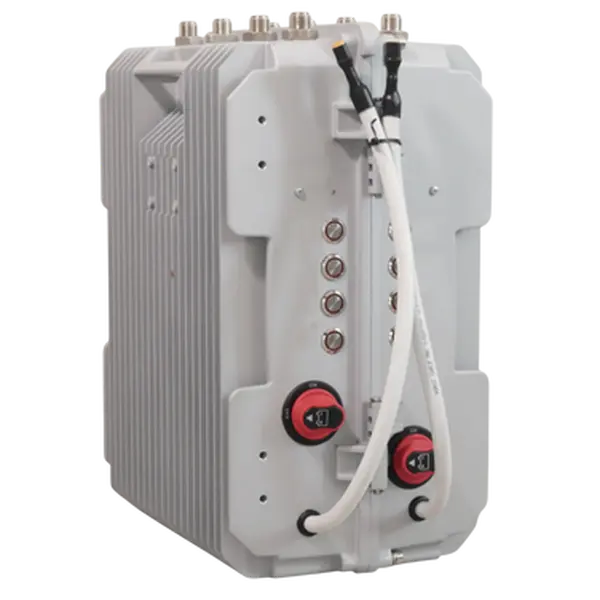

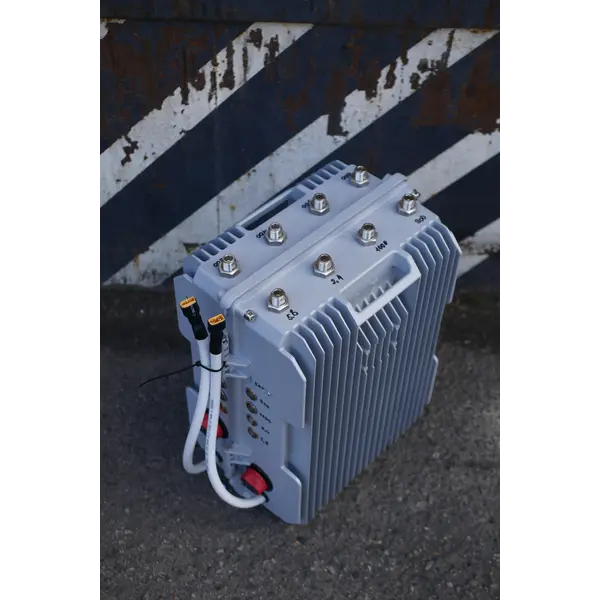

Portable Anti-Drone System (EW) "TUMAN"
The portable anti-drone system "TUMAN" with an eight-channel configuration is a modular mobile complex designed to protect objects from attacking FPV drones and multicopter payloads (including DJI, MAVIK, AUTEL).
Frequency Capabilities
- Low-frequency FPV bands: 300–600 MHz and 710–1050 MHz
- Upper FPV bands: 2390–2490 MHz and 5750–5880 MHz
- Suppression of control channels and payloads: 2.4 GHz and 5.8 GHz
Design & Power
- Eight RF jamming modules with nominal power of 50 W per module
- Quadrifilar omnidirectional antennas for FPV and patch antennas for multicopters (options 9 dBi / 3 dBi)
- Typical effective protection range: 70–300 m, up to 1000 m in optimal conditions
Power Supply & Autonomy
- Power supply range: 12–26 V

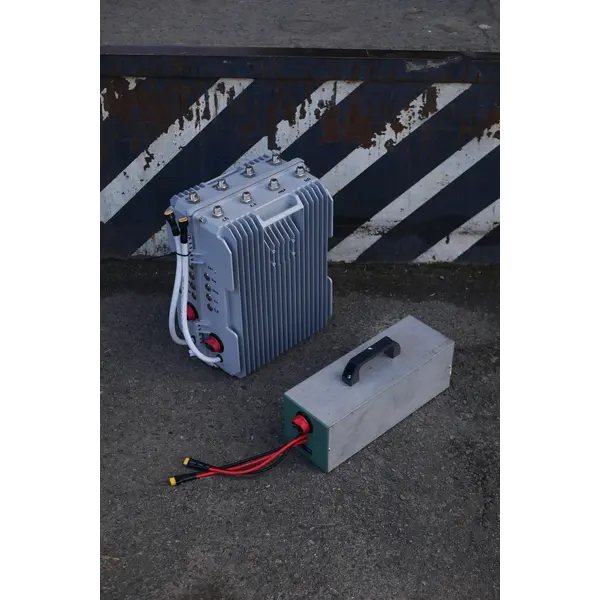

- The kit includes two 6S8P batteries (24 V)
- Autonomous operation up to 1 hour (≈40 min in nominal mode)
Dimensions & Protection
- Module block dimensions: 358×263×120 mm
- Weight: approx. 12 kg
- Aluminum housing, operates from −20 to +50 °C
- Protection rating: IP55
Additional Features
- Battery monitoring system and module self-diagnostics
- Warranty: 12 months
Applications
- Protection of stationary and temporary objects
- Event security
- Engineering support for units
- Critical infrastructure protection
Main characteristics
Frequency jamming
FPV (lower) - 300 MHz-600 MHz; FPV (upper) - 710 MHz-1050 MHz; DJI (discount) - 2390 MHz-2490 MHz, 5750 MHz-5880 MHz
Antenna type
quadrifilar (omnidirectional) (3dbi); patch (9dbi)
Suppression radius
up to 1000m
Operating voltage
12-26V
