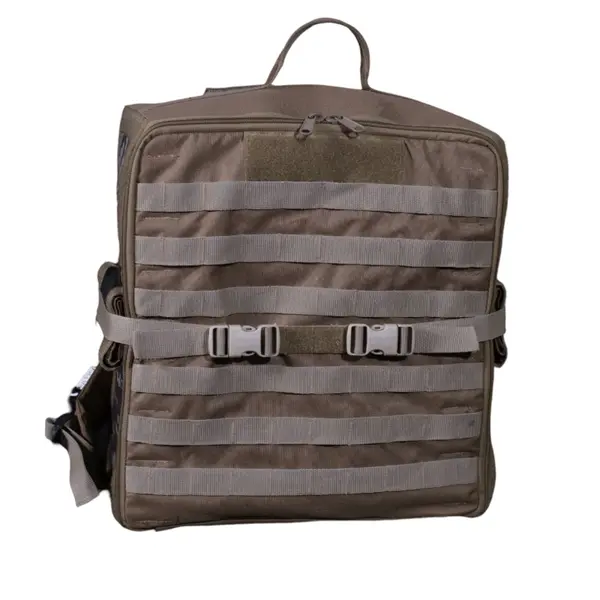

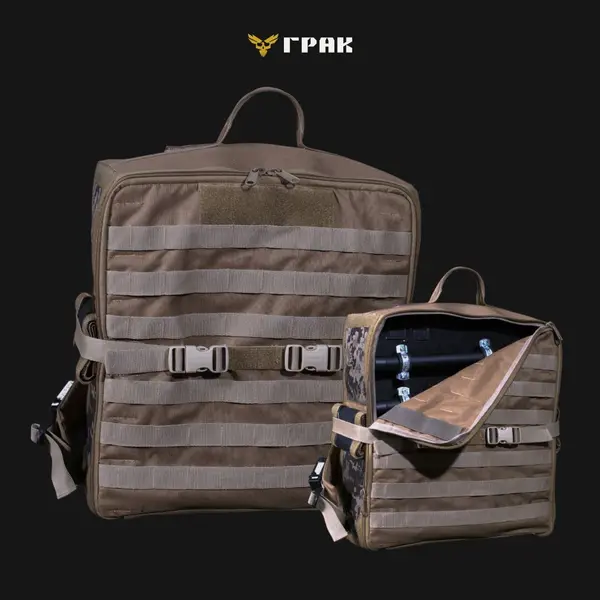

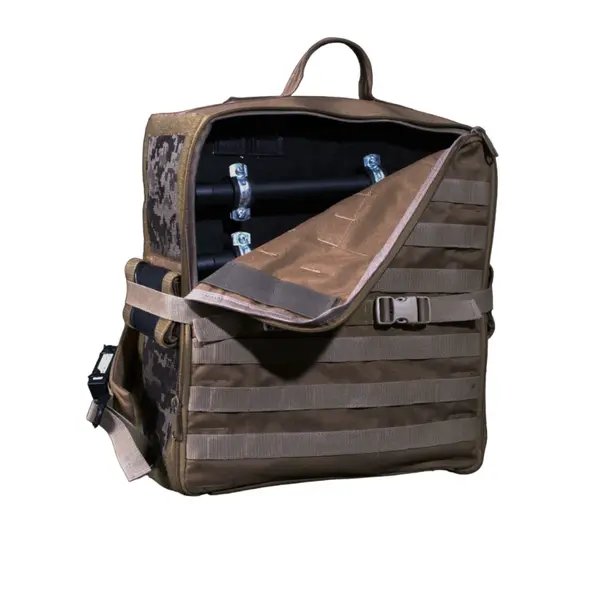

SKJOLD mobile electronic warfare backpack (batteries, charger, radiation sensors)

Mobile EW backpack — spectrum protection in the operator's pocket

SKJOLD is a portable modular electronic warfare system in a backpack form factor, designed for rapid deployment and long-term operation in the field. The system is powered by quick-change 6s batteries, which allows for quick extension of operating time by replacing the batteries. SKJOLD provides selective operation in 1–6 operating bands with an output power of up to 50 W per channel and is designed for protective and defensive tasks in the area of responsibility of mobile units.

Characteristics (main)

• Form factor: Backpack (portable EW device)

• Number of operating ranges: 1 / 2 / 3 / 4 / 5 / 6 (selectable)

• Ranges (optional):

  • 200–300 MHz

  • 300–400 MHz

  • 400–500 MHz

  • 500–650 MHz

  • 650–800 MHz

  • 800–950 MHz

  • 950–1100 MHz

  • 1100–1200 MHz

  • 1200–1300 MHz

  • 1500–1600 MHz

  • 2400–2500 MHz

  • 5800–5900 MHz

• Power: up to 50 W per channel

• Power supply: built-in 6s batteries, quick battery replacement (modular battery pack)

• Operating time: standard battery pack — 30 min; extended operating time with additional batteries (depends on number of modules and configuration)

• Weight: up to 10 kg in 6-module configuration

• Quick-change batteries: yes - operating time limitation is determined by the weight/battery capacity in the backpack

Equipment (standard)

• Carrier backpack with integrated module compartments

• Set of modules according to the selected configuration (1–6)

• Battery pack (enough for 30 minutes of operation)

• Battery charger

• Power cables and adapters

• Tools for quick battery/module replacement

• Radiation monitoring sensors to check operating status

Number of ranges - price

• 1 69,000
• 2 92,000
• 3 115,000
• 4 138,000
• 5 161,000
• 6 184,000

Prices are for the complete set "backpack + modules + batteries + charger + sensors".

SKJOLD advantages

• Mobility and compactness: a complete EW tool in the form of a backpack, ready to be carried by a foot operator.

• Quick-change batteries: quick extension of operating time without complicated maintenance procedures.

• Modularity: choice of operating ranges and system scalability — add or replace modules easily in the field.

• High power density: up to 50 W per channel for efficient operation in the selected range.

• Ready-made kit: the box contains everything you need to get started — batteries, chargers, and radiation monitoring sensors.

• Operator comfort: ergonomic backpack with well-thought-out compartments and arrangement of elements.

Areas of application (recommendations)

• Mobile electronic warfare protection in urban and field conditions

• Temporary countermeasure equipment during operations where portability is required

• Supporting mobile units when it is impossible to deploy stationary complexes

• Operational tasks requiring rapid spectrum configuration changes

Notes on operation

SKJOLD is a specialized electronic warfare device. The use of the device must comply with current legislation and internal procedural requirements for the operation of electronic warfare devices. It is recommended that the operator undergo training before using the system in practical conditions.
